REIMAGINE YOUR BATHROOM

Mont Synthesis is a modular interlocking shower surround system using large format porcelain that is mechanically attached to traditional stud framing without the use of thin set. Mont Synthesis is contractor friendly and brings substantial cost savings on labor and resources! Mont Synthesis is groutless and easy to maintain. Porcelain panels are replaceable and provide easy access to plumbing.

Let's Get Started with an Easy 3-Step Process!

..
..
..

  • Alex Calacatta
    Alex Calacatta
    Finish: Polished
  • Aristone Cerobe
    Aristone Cerobe
    Finish: Polished
  • Atlantic White
    Atlantic White
    Finish: Polished
  • Bianco Dolomiti
    Bianco Dolomiti
    Finish: Polished
  • Breccia Beige
    Breccia Beige
    Finish: Polished
  • Calacutta Bianco Oro
    Calacutta Bianco Oro
    Finish: Matte
  • Cemento Grey
    Cemento Grey
    Finish: Matte
  • Chocolate Martini
    Chocolate Martini
    Finish: Polished

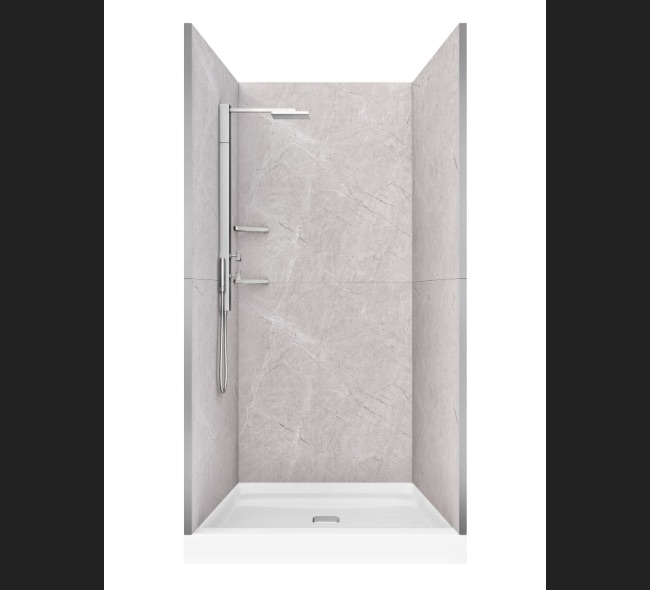

  • Nordic Silver
    Nordic Silver
    Finish: Matte
  • Orion Crema
    Orion Crema
    Finish: Polished
  • Travertino Beige
    Travertino Beige
    Finish: Polished
  • White Tiger Onyx
    White Tiger Onyx
    Finish: Polished
Alex Calacatta

Alex Calacatta


Finish: Polished

Aristone Cerobe

Aristone Cerobe


Finish: Polished

Atlantic White

Atlantic White


Finish: Polished

Bianco Dolomiti

Bianco Dolomiti


Finish: Polished

Breccia Beige

Breccia Beige


Finish: Polished

Calacutta Bianco Oro

Calacutta Bianco Oro


Finish: Matte

Cemento Grey

Cemento Grey


Finish: Matte

Chocolate Martini

Chocolate Martini


Finish: Polished

Nordic Silver

Nordic Silver


Finish: Matte

Orion Crema

Orion Crema


Finish: Polished

Travertino Beige

Travertino Beige


Finish: Polished

White Tiger Onyx

White Tiger Onyx


Finish: Polished

Find a Partner /
Be a Partner

  • Click here to find a Mont Synthesis Partner in your area.
  • Consider becoming a Mont Synthesis Partner. Learn more

Written Instructions

Find a Partner/Be a Partner

  • Click here to find a Mont Synthesis Partner in your area.
  • Consider becoming a Mont Synthesis Partner. Learn more

Written Instructions

Mont Synthesis Product Specifications

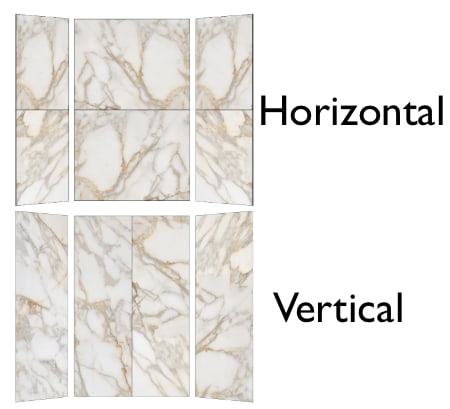

Horizontal Layout

H Series Surround Kit
H Series

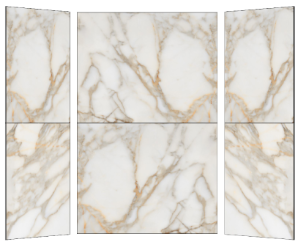

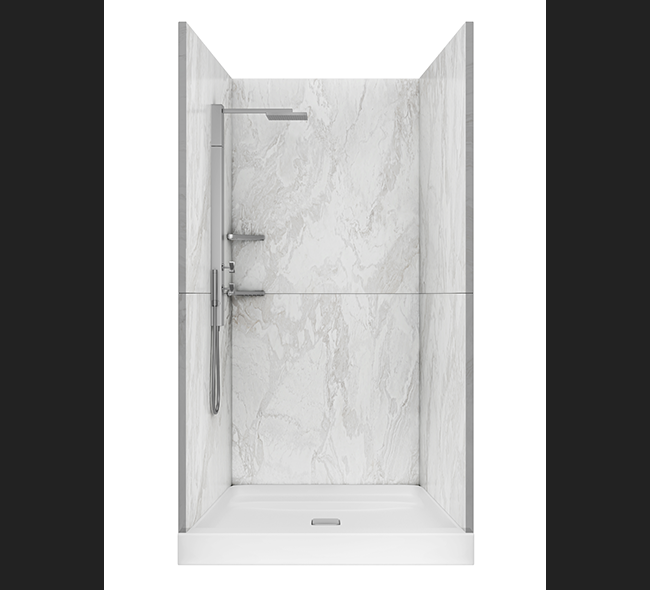

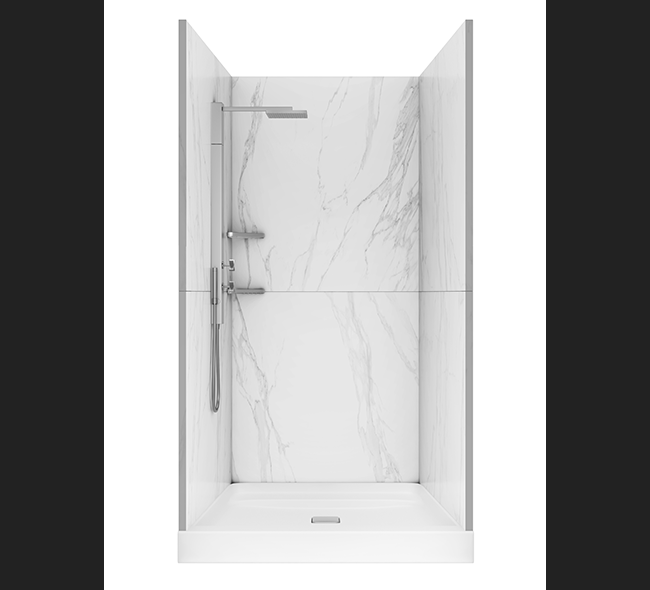

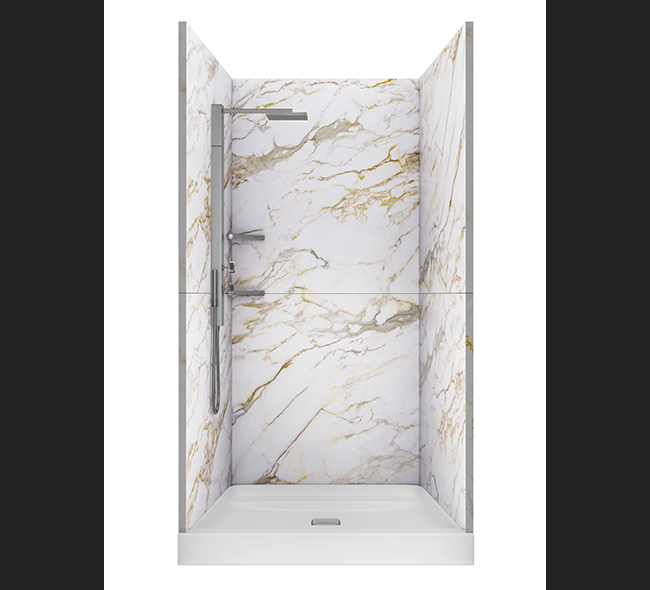

Mont Synthesis H-Series Horizontal Standard Shower Surround Kit

Mont Synthesis H-Series Horizontal Standard Shower Surround Kit provides a lightweight, durable, and luxurious surfacing material for your standard, three-wall, alcove shower surround or tub surround. Synthesis panels feature a mechanical fastening system and an integral, moisture-resistant backer, saving time at installation and significantly reducing breakage. Patent Pending.

  • Pre-cut, modular panels are ideal for any standard-sized, three-wall, alcove shower up to 60”W x 36”D
  • Can be used for smaller showers and tub surrounds by simply cutting the panels to the required dimensions
  • Two horizontal panels are stacked to make a 94-1/2”H shower surround
  • Linear patterns run horizontally when installed
  • Includes two back-wall panels and four side-wall panels
  • Designed to be installed from inside the shower where there is no access to the backside of the shower walls.
  • Includes all materials to install the complete shower surround
  • Ships in a corrugated carton on a 53”W x 65”L wooden pallet
Download Sell Sheet

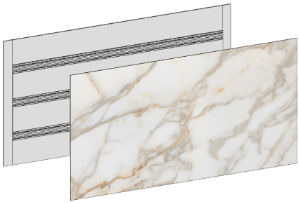

Synthesis H-Series Horizontal Porcelain Composite Wall Panels
H Series

Mont Synthesis H-Series Horizontal Porcelain Composite Wall Panels

Mont Synthesis H-Series horizontal porcelain composite wall panels are a lightweight, durable, and luxurious surfacing material for your shower surround, tub surround, or feature wall. Synthesis panels feature a mechanical fastening system and an integral moisture-resistant backer to save time at installation and significantly reduce breakage. Large format panels are stacked to provide a shower surround that is 94-1/2”H with one horizontal seam on all walls.

  • Full-sized panels are shipped at 94-1/2”W x 47-1/4”H with three tracks mounted lengthwise on the back of the panel
  • Ideal for larger three-wall showers and many custom configurations
  • Linear patterns run horizontally when installed
  • Can be installed from inside the shower using our proprietary and enhanced mounting system or from the backside of the shower using our back-of-wall attachment system.
  • Currently ships in a 56” w x 103” long flat, wooden crate
Download Sell Sheet

Vertical Layout

Synthesis V Series Vertical Shower Surround
V Series

Synthesis V Series Vertical Shower Surround

The Synthesis V-Series Vertical Surround provides a lightweight, durable and luxurious surfacing material for your custom shower or tub surround. Synthesis panels feature a mechanical fastening system and an integral, moisture-resistant backer, saving time at installation and significantly reducing breakage. Patent Pending.

  • Modular Shower Panels can be arranged to fit any shower configuration
  • Can be used for smaller shower and tub surrounds by simply cutting the panels to the required dimensions
  • One vertical panel measures 47-1/4 wide by 94-1/2 in height
  • Linear patterns run vertically when installed
  • Modular Shower Panels are Sold Individually
  • Designed to be installed from inside the shower where there is no access to the backside of the shower walls
  • Currently ships in a 56”W x 103” L Flat wooden Crate
Download Sell Sheet
Mont Synthesis V-Series Vertical Porcelain Composite Wall Panels
V Series

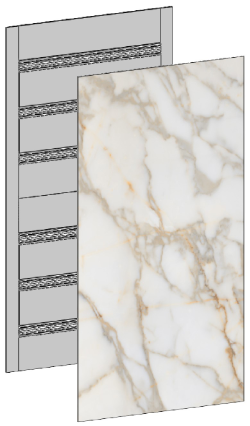

Mont Synthesis V-Series Vertical Porcelain Composite Wall Panels

Mont Synthesis V-Series vertical porcelain composite wall panels are a lightweight, durable, and luxurious surfacing material for your shower surround, tub surround, or feature wall. Mont Synthesis panels feature a mechanical fastening system and an integral moisture-resistant backer to save time at installation and significantly reduce breakage. Large format panels may reduce or eliminate seams in shower walls. Patent Pending.

  • Full-sized panels are shipped at 47-1/4”W x 94-1/2”H with six tracks mounted crosswise on the back of the panel
  • Ideal for many standard and custom configurations
  • Linear patterns run vertically when installed
  • Can be installed from inside the shower using our proprietary and enhanced mounting system or from the backside of the shower using our back-of-wall attachment system
  • Currently ships in a 56”W x 103”L flat wooden crate
Download Sell Sheet

Installation Kit Accessories

Mont Synthesis Ceiling Panel Kit
Ceiling

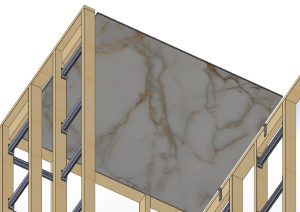

Mont Synthesis Ceiling Panel Kit

Mont Synthesis ceiling panels may be installed with our Synthesis H-Series or V-Series panels and feature a mechanical fastening system and aluminum stabilizers. Available for shower or tub surrounds that are less than 60” wide.

  • Ceiling panels are shipped at 58-1/2”W x 47-1/4”D with tracks mounted lengthwise on the back of the panel
  • Ideal for any shower up to 60”W x 47-1/4”D
  • Linear patterns run lengthways on the panel
  • Includes all materials to install one ceiling panel: two panel stabilizers, six angle brackets, and associated fasteners.
  • Can ship with the H-Series Horizontal Standard Shower Kit, with H-Series Horizontal Panels, or with V-Series Vertical Panels
Download Sell Sheet

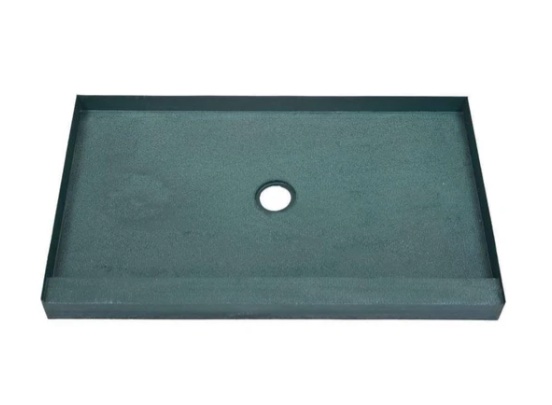

KBRS Tile Basin
Tile-Basin®

The KBRS Linear Tile-Basin® is a rock-solid alternative to a field-sloped mortar bed. It is specifically designed to protect your shower long term. The patented 1/8” perimeter flange facilitates water taking the path of least resistance directly into the drain. The protective barrier flange is guaranteed to prevent moisture from escaping the system from behind the wall, substrate or sub-floor.
(Our system works with many other shower pan options)

KBRS is the RECOMMENDED Tile-Basin®. Multiple shower pan options can also be used with the System.

Download Sell Sheet
Mont Synthesis Installation Kit
Installation

Mont Synthesis Installation Kit

The Mont Synthesis Installation Kit includes essential tools for installing any Synthesis shower or tub surround.

  • Aluminum jigs make it simple and easy to correctly place the brackets at the correct heights on the studs/surface to align with the panel tracks
  •  Adjustable from 34"W to 60"W, accommodating most standard shower and tub dimensions
  • Adjustable for height of tub or shower using joining bracket(s) after field modification
  • Smaller shower sizes may be accommodated via field modification
  • Contents include the following:
    • one vertical aluminum jig
    • one epoxy applicator gun for use with a 250ml 10:1 cartridge
  • One-time tool purchase can be used for multiple Synthesis installations
Download Sell Sheet
Mont Synthesis Cutting Kit
Installation

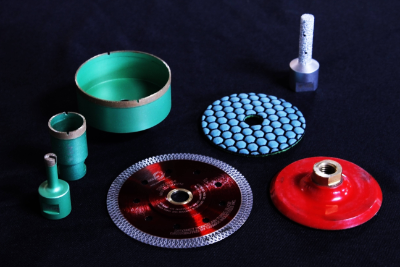

Mont Synthesis Cutting Kit

The Mont Synthesis Cutting Kit includes an assortment of recommended blades, bits, and tooling for use in trimming, scribing, and modifying Mont Synthesis wall panels.

  • Kit consists of the recommended tooling to cut and machine Synthesis panels. Core bits are included in the most-commonly used sizes.
  • Contents include the following:
    • one 5” porcelain cutting blade
    • one 3/8” diameter core bit
    • one 1-1/4” diameter core bit
    • one 3-1/2” diameter core bit
    • one small finger bit
    • one 4” backer pad
    • one 4” dry diamond polishing pad
  • All tooling for use with an electric angle grinder with a 5/8”-11 arbor. Variable speed and minimum 13 amps recommended.
  • Additional tooling may be required on an as-needed basis for more custom installations.
  • Can be used for multiple Synthesis installations
  • Angle grinder not included.
Download Sell Sheet
